CAD File Export

This guide explains how to export your design from MachineBuilder as a STEP file.

Exporting a Design from MachineBuilder

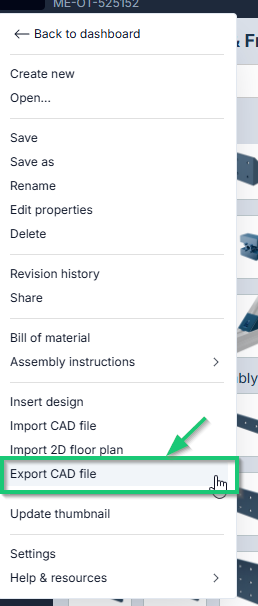

1. Access CAD File Export: Navigate to the menu in the top-left corner of the navigation bar and select CAD File Export.

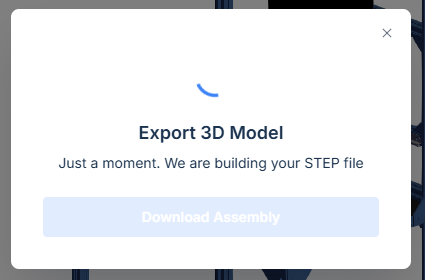

2. Convert to STEP File: The system will process your design and convert it to a STEP file.

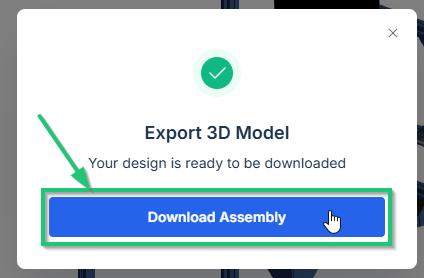

3. Download the File: Once the conversion is complete, click Download Now to download your STEP file.
